26.6 kg unit weight and optimised footprint make this the most portable saw in its class
Steel roll cage protects saw against jobsite drops and impacts
Rack and pinion fence system, front and rear fence lock and large, clear scales combine to give an extremely accurate and easy to use saw
Powerful 2000 Watt motor for high performance in all applications (1700 Watt 110V version UK only)

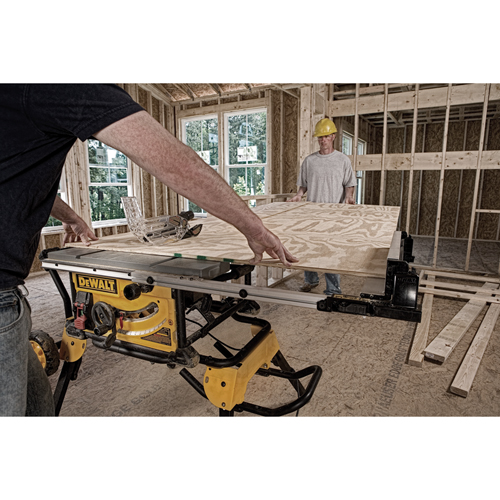

Fence system provides 825 mm of rip capacity in a portable design for cutting large sheet materials to size
Cast table top design ensures accuracy and precision
Overload protection system ensures powerful performance in hard, wet or frozen woods
Quick bevel lock with large scale for easy, accurate adjustments.
Power Input 2000 Watts
Power Output 970 Watt
Blade Speed 3800 rpm
Blade Diameter 250 mm
Blade Bore 30 mm
Bevel Capacity -3 to 48 °
Max. Ripping Capacity [right] 825 mm
Max. Ripping Capacity [left] 558 mm
Max. Depth of Cut at 90º 77 mm
Max. Depth of Cut at 45º 57 mm
Table Size 670x630 mm
Weight 26.6 kg
Depth 742 mm
Length 577 mm
Height 425 mm
Sound Power 106 dB(A)
Sound Power Uncertainty 3.3 dB(A)
Sound Pressure 95 dB(A)
Sound Pressure Uncertainty 3 dB(A)
