DeWalt
DWE576

DeWalt Circ Saw DWE575

+Shipping
  • Description
  • More Details
  • Precision 24 tooth saw blade

  • Rip Fence

  • Blade Spanner

  • Heavy duty carrying case

  • Dust Extraction Spout

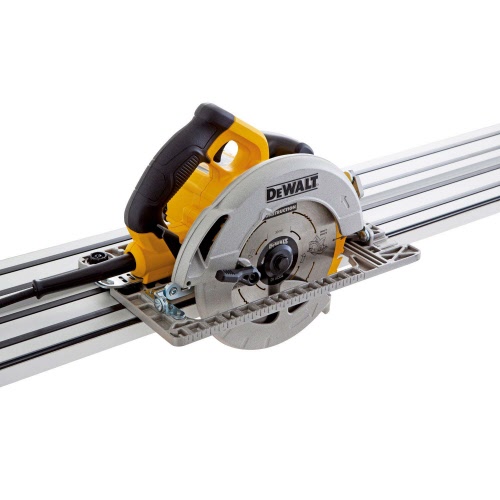

160watt 61mm DOC Precision Rail Circular Saw

  • Scale for precise cutting depth setting to 61 mm
  • General purpose ripping, cross-cutting and bevelling circular saw for wood and other construction materials
  • High torque motor for durability and power for cutting job site and joinery materials
  • Guide rail compatible for quick and easy use with the DEWALT guide rail system
  • Additional handle for safe two-handed work
  • Variable adjustment of the bevel angle to 57 degrees
  • Optimum balance for safe, fatigue-free operation
  • Protection hood for up to 95% sawdust extraction
  • Power Input 1600 Watts

  • Power Output 1000 Watt

  • No Load Speed 5200 rpm

  • Blade Diameter 190 mm

  • Blade Bore 30 mm

  • Bevel Capacity 57 °

  • Max. Depth of Cut at 90º 61 mm

  • Max. Depth of Cut at 90º[with guide rails] 57 mm

  • Max. Depth of Cut at 45º 43 mm

  • Max. Depth of Cut at 45º[with guide rails] 39 mm

  • Weight 4.0 kg

  • Length 355 mm

  • Height 245 mm

  • Hand/Arm Vibration 2.5 m/s2

  • Uncertainty K 1 (Vibration) 1.5 m/s²

  • Sound Pressure 89 dB(A)

  • Sound Pressure Uncertainty 3 dB(A)

  • Sound Power 100 dB(A)

  • Sound Power Uncertainty 3 dB(A)

DWS5022 1.5m Guide rail.
